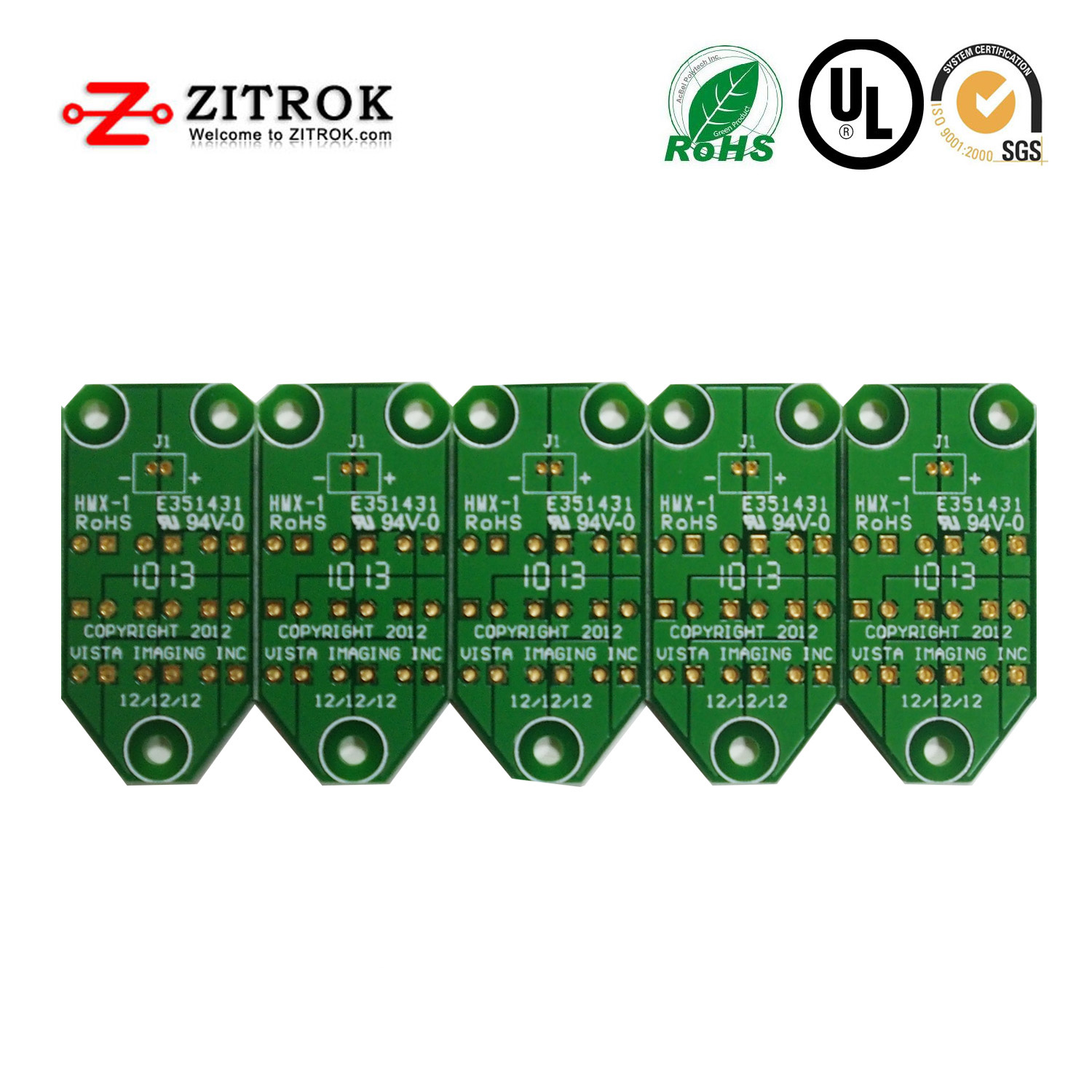

High Frequence PCB
The High Frequence PCB can meets your demands when the electronic devices need special signal. It offers a frequency range of 500mhZ-2ghz, which is well suited for high-speed design and higher transmission frequencies such as radio frequency (RF), microwave and mobile applications, as well as faster signal flow rates, in line with the current development trend of high-frequency electronic equipment. Communication products such as satellite systems and mobile phone receiving base stations have great demand for high-frequency circuit boards.

Features Of High Frequency PCB Boards

(1)They have a low dielectric constant ( DK) relatively stable,  and have a tight tolerances. Generally speaking, the smaller the DK value, the better. The signal transmission rate is inversely proportional to the square root of the material's dielectric constant, and high dielectric constant is likely to cause signal transmission delay.
(2)The dielectric loss (DF) is very small. As the smaller the dielectric loss, the smaller the signal loss.
(3)Not easy to absorb water, having strong  moisture resistivity.
(4)Excellent heat resistance, chemical resistance and peel strength.


Material Selection for High Frequency PCB

ZITROK has increased its investment in high-frequency circuit board equipment in the past few years, in order to meet the development needs of customers around the world for wireless communication equipment. We have a great wealth of experience in manufacturing various high-frequency circuit boards for rapid  prototypes and mass production. The following are some of the high-frequency circuit board materials we normally use, let's check them!
Vendor Materials
Rogers Ro3001
Rogers Ro3003
Rogers Ro3010
Rogers Ro4003
Rogers Ro4403
Rogers Ro4350
Rogers RT5880
Vendor Materials
Taconic RF-30
Taconic FEP
Taconic TLX
Taconic TLC
Taconic TLG
Taconic TSM-DS3
Vendor Materials
Arlon Cuclad6700
Arlon CLTE
Arlon Diclad
Arlon 25FR
Arlon 25N
Arlon 49N


Capabilities for High Frequency PCB

Layers 2-24 layers
PP Rogers 4450F, Domestic-(25FR), Domestic-(RF-27), Domestic-(6700)
Board Size Min 6mm x 6mm | Max 457mm x 610mm
Board Thickness 0.4mm - 5.0mm
Copper Weight(Finished) 0.5oz - 2.oz
Min Tracing/Spacing 3mil/3mil
Surface Finish
Electroless nickel/immersion gold (ENIG) - RoHS Immersion silver - RoHS
Immersion tin - RoHS
Organic solderability preservatives - RoHS
Min Annular Ring 4mil
Min Drilling Hole Diameter 6mil
Other Techniques
Peelable solder mask
Gold fingers
Carbon oil
Countersink holes

Testing Procedures
High Frequence PCB High Frequence PCB high frequence pcb high frequence pcb
